Product Description

Features:

• Large High Scale RC Model
• Radio Controlled 2.4GHz 12 Channel Twin EDF Jet (Aileron, Elevator, Rudder, Throttle, Front and Rear Airbrake Flaps, Retracts With Doors, Folding Wings, 360 Degree Thrust Vectoring Nozzles, Canopy opening)
• Electronically controlled Fold-able Wings.
• Electronically controlled opened canopy.
• Authentic aluminium alloy screw retracts with suspension and cover doors.
• Equipped with two RC controlling electronic 360 degree vector nozzles; it makes the fighter more sensitive and could be controlled under gravity-free condition.
• 15 sets of digital servos means it can complete almost all real plane simulate actions, such as hanging, spin, flat spin and all other tricks.
• Stable invert flight. Excellent stability of nosing up and down.
• Working LED lights suitable for night flight.
• EPS foam material. High simulation. Unique design, fine making in details.
• Twin 70mm EDF units. (Electric Ducted Fans)
• High speed (could be 120km/h) depends on the accessories.
• 2.4GHz spectrum remote transceiver available, with the functions of automatic identification and precise code pairing, strong anti-jamming, and allow more than 20 aircrafts to fly at the same field at same time
• Electronically retractable landing gear

Specification:

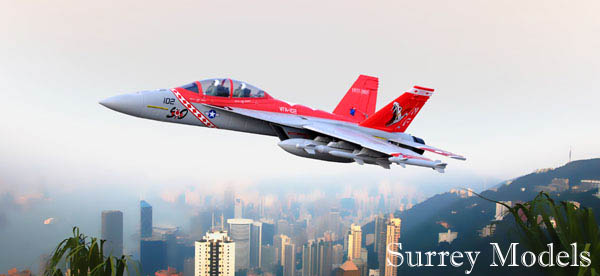

Product Name:	F18 Super Hornet
Colour:	Bounty Hunter - Military Grey Jolly Roger - Black & Grey Diamond Viper - Red & Grey
Length:	1505mm
Wingspan:	1205mm
Material:	EPO Foam
EDF Diameter:	70mm
Flying Weight:	2750g
Thrust Vectoring:	Dual 360 degree thrust vectoring nozzles
Mechanical Folding Wings:	Threaded rotary shaft driven with locking pins
Retract System:	Threaded rotary shaft driven
Canopy Opening System:	Threaded rotary shaft driven
Radio:	12 Channel
Servo:	17g digital metal servo
Speed Controller:	2x 50A Brushless speed controller w/ 5A BEC
Retracts Material:	Aluminium Alloy
Control System:	2.4GHz Multifunctional Transmitter and Receiver
Aircraft Battery:	Li-Po 2x 11.1v/4000mAh (25C)

Product Info:

This Aircraft is NOT A TOY. It is not suitable for children under 14 years of age. Children under the age of 14 must not operate this product alone.  They must be accompanied by an experience adult at all times.



Flying Skill Level:

Advanced and experienced pilots recommended.

Build Level:

Moderate airplane assembly required. Internal wiring and electronics configuration is required. Please dry fit and test all electronics before gluing and securing any components.

Maintenance Level:

After every 5 flights and before and after storing airplane, please check all control surface horns and tighten the screws on surface horns if needed. Check the control pushrod clevis to insure no cracks are visible and no clevis has come loose. Check all control surfaces for solid contact between control surfaces, main wings and tail sections. Check for any loose screws anywhere screws are located. Check all wires connecting to the receiver for solid connection.

Please Note: If you have very little knowledge of Model Plane Assemble or have no Radio Control Flying experience, we would NOT recommend you to purchase this product to learn on.



Package Includes:

There is no clear industry standard definition for RTF, ARF, RXR, KIT, etc. Every manufacturer makes up their own definitions. The generally accepted definitions are: KIT means that you get all of the components of the plane, i.e.: fuselage, wings, tail, landing gear, even ducted fan, etc., pre-built but not pre-assembled; No electronic parts are included. RTF (Ready To Fly) means that you get the complete model, which includes all electronic parts—equipped model itself and RC Transmitter, Receiver, Flight Battery and 90 – 98% assembled. All “RTF” versions will have slight final assembly and setting up to do before flying. Required items: RC transmitter AA batteries and Li-po flight battery charger depending on the model aircraft purchased. RXR means that you get the RTF but no RC transmitter/Receiver. ARF means that you get the RTF but no RC transmitter/Receiver and no aircraft Battery.
